HomeProductsSeeding EquipmentPower Harrow SeederPower Harrow Seeder
Power Harrow Seeder

Power Harrow Seeder

Product Images Technical Specification Mechanical Model Item Unit 3m 20 rows 3m 16 rows 2.5m 16 rows 2.5m 12 rows Overall Dimensions (L×W×H) mm 2920×3350×2000 2920×3350×2000 2920×2850×2000 2920×2850×2000 Machine Weight kg 2865 2790 2455 2380 Matched Power Range kW 147~220 147~220 132~191 132~191 Matched Tractor PTO Speed r/min 1000 1000 1000 1000 Working Speed Range…

Matched Power Range:
147~220
Matched Tractor PTO Speed:
1000
Working Speed Range:
8~10

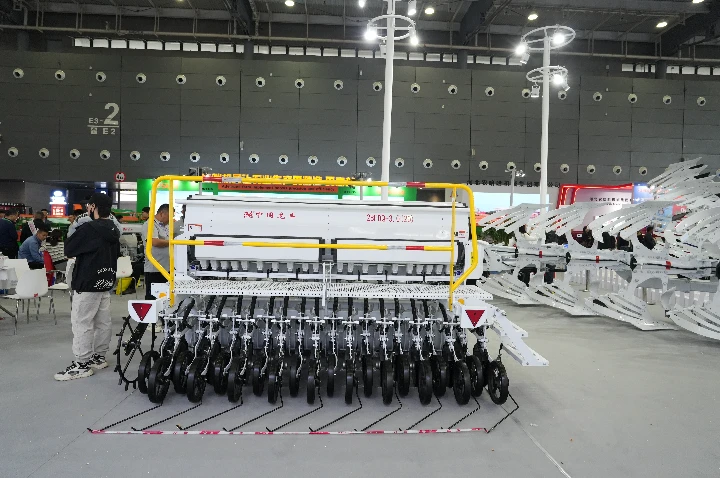

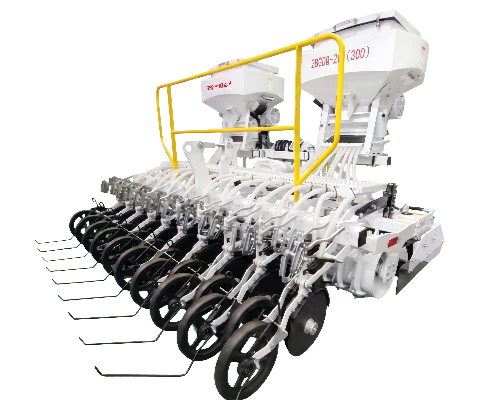

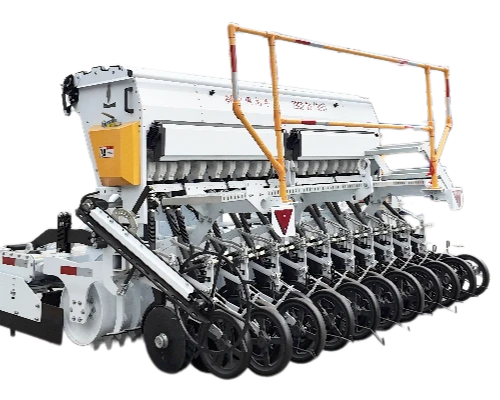

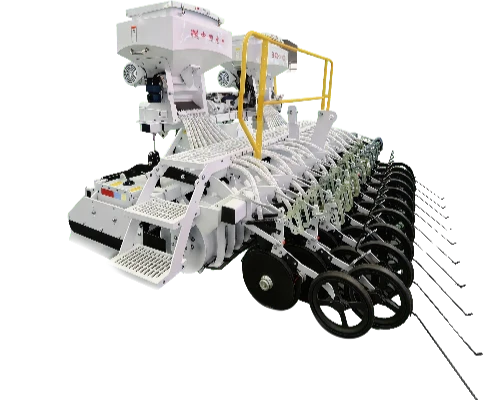

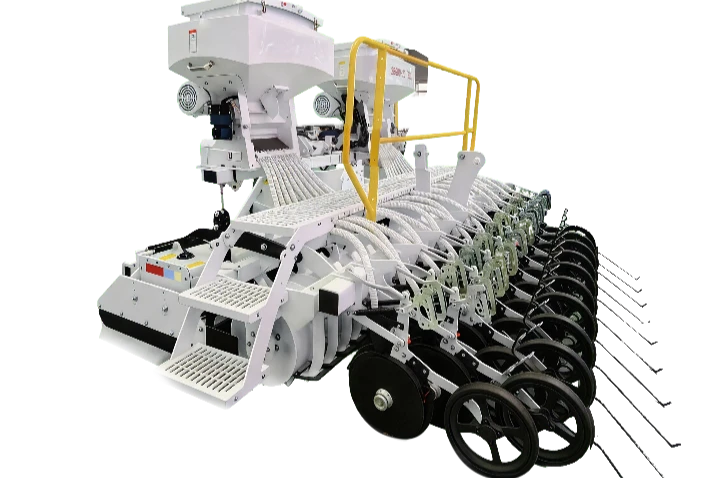

Product Images

Technical Specification

Mechanical Model

ItemUnit3m 20 rows3m 16 rows2.5m 16 rows2.5m 12 rows
Overall Dimensions (L×W×H)mm2920×3350×20002920×3350×20002920×2850×20002920×2850×2000
Machine Weightkg2865279024552380
Matched Power RangekW147~220147~220132~191132~191
Matched Tractor PTO Speedr/min1000100010001000
Working Speed Rangekm/h8~108~108~108~10
Working Efficiencymu/h30~4530~4520~3520~35
Seed Hopper CapacityL650650530530
Maximum Seeding Ratekg/mu35353535
Working Widthmm3000300025002500
Number of Working Rows20161612
Row Spacingmm150187.5156.5208.5
Seed Metering DriveGround-wheel DriveGround-wheel DriveGround-wheel DriveGround-wheel Drive
Seed Metering TypeFluted WheelFluted WheelFluted WheelFluted Wheel
Furrow Opener TypeDouble DiscDouble DiscDouble DiscDouble Disc
Individual Floating TypeIndependent Non-synchronous FloatingIndependent Non-synchronous FloatingIndependent Non-synchronous FloatingIndependent Non-synchronous Floating
Number of Harrow Teethpcs24242020
Ground Wheel TypeSteel WheelSteel WheelSteel WheelSteel Wheel

Electric Control Model

ItemUnit3m 20 rows3m 16 rows2.5m 16 rows2.5m 12 rows
Overall Dimensions (L×W×H)mm2920×3210×20002920×3210×20002920×2710×20002920×2710×2000
Machine Weightkg2840276524402365
Matched Power RangekW147~220147~220132~191132~191
Matched Tractor PTO Speedr/min1000100010001000
Working Speed Rangekm/h8~108~108~108~10
Working Efficiencymu/h30~4530~4520~3520~35
Seed Hopper CapacityL650650530530
Maximum Seeding Ratekg/mu50505050
Working Widthmm3000300025002500
Number of Working Rows20161612
Row Spacingmm150187.5156.5208.5
Seed Metering DriveElectric DriveElectric DriveElectric DriveElectric Drive
Seed Metering TypeFluted WheelFluted WheelFluted WheelFluted Wheel
Furrow Opener TypeDouble DiscDouble DiscDouble DiscDouble Disc
Individual Floating TypeIndependent Non-synchronous FloatingIndependent Non-synchronous FloatingIndependent Non-synchronous FloatingIndependent Non-synchronous Floating
Number of Harrow Teethpcs24242020
Ground Wheel TypeSteel WheelSteel WheelSteel WheelSteel Wheel

Company Advantages

Advantages 01
Comprehensive Portfolio

LEROX is dedicated to delivering full-scenario implement solutions for modern agriculture. Our extensive product matrix spans multiple operational dimensions, offering an all-inclusive range from agile, compact models to heavy-duty flagship designs. Seamlessly matching mainstream power platforms from 80 to 600 horsepower, LEROX provides tailor-made equipment combinations that ensure high-efficiency, continuous, and synergistic operations worldwide—regardless of soil types or farming environments.

Advantages 02
Ultimate Reliability

From primary tillage and precision seeding to crop management and harvesting, every core chassis and critical component of LEROX machinery is forged and proven under the most extreme field conditions. Empowered by advanced intelligent control systems and robust overload protection technologies, our equipment delivers stable, uncompromising performance in any harsh environment. More than just a machinery manufacturer, LEROX is a guardian of modern agronomy—reducing full lifecycle operating costs and creating long-term, value-driven smart returns for agricultural producers worldwide.

FAQ

What agricultural equipment do you specialize in?

Founded in 1993 with a primary focus on reversible ploughs, we have evolved into a comprehensive manufacturer with over 30 years of expertise. Our flagship products include high-performance hydraulic reversible ploughs, power harrows, and precision seed drills.
Today, the LEROX product ecosystem covers the entire cultivation cycle—including tillage, land preparation, seeding, and crop management. Our extensive portfolio features subsoilers, rotary cultivators, disc harrows, and hay rakes, all engineered to meet the diverse demands of modern global agriculture.

Are your machines compatible with different tractor models?

Yes, LEROX implements feature extremely high compatibility. Our designs follow international standards (such as Category 2/3/4 three-point linkage) and can perfectly match tractor models from major global brands. By providing various frame strengths (such as 140/160/180 series) and adjustable traction logic, we ensure that tractors from 80 hp to 600 hp can find the most suitable implement model, achieving optimal power transmission and fuel efficiency.

What warranty do you offer for farming machinery?

LEROX provides a comprehensive quality guarantee for all agricultural machinery. We offer a XXX warranty period for core structural components. During this period, if any component fails due to manufacturing defects, we will provide replacement parts free of charge. For wearing parts, we recommend purchasing a spare parts kit along with the machine to ensure operational continuity. Additionally, we provide lifetime remote technical support and detailed maintenance guidance.

Can you customize equipment for different crops and soil conditions?

Yes, LEROX provides customized solutions across our entire product line to adapt to various crops and soil conditions, offering modular configurations such as specialized plough bodies for sticky soils, adjustable safety systems for stony terrains, and calibrated metering units for different seed types to ensure optimal performance in your specific agronomic environment.

How about delivery time and packaging for international orders?

For international orders, LEROX ensures efficient delivery and robust protection: our standard lead time is typically 30 to 45 days depending on the order volume and customization, and all equipment is secured with reinforced steel frames or sea-worthy packaging to prevent damage during maritime transit while maximizing container space efficiency.

Do you provide operation training and after-sales service?

Yes, LEROX provides comprehensive technical support including detailed operation manuals and video tutorials for every machine, alongside professional after-sales service through remote video guidance and a rapid-response parts supply system to ensure your equipment maintains peak performance.

What payment terms do you accept for international buyers?

LEROX offers flexible payment terms to facilitate international trade, typically accepting T/T (Telegraphic Transfer) with a 30% deposit and the balance before shipment, or an Irrevocable L/C at sight (Letter of Credit) for larger orders to ensure financial security for both parties.
