Description

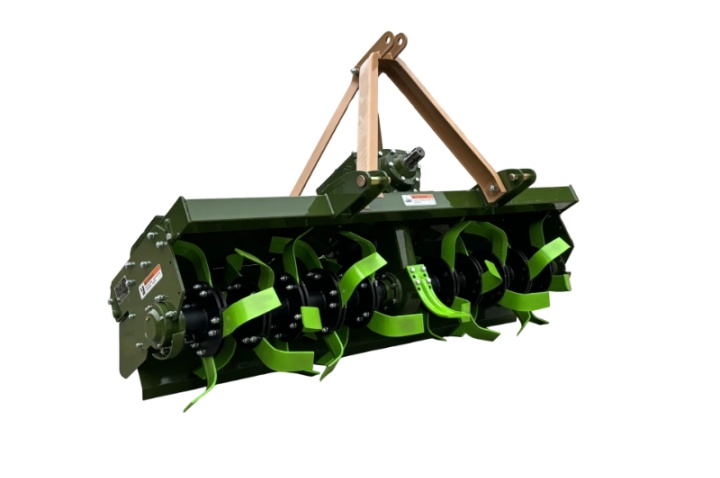

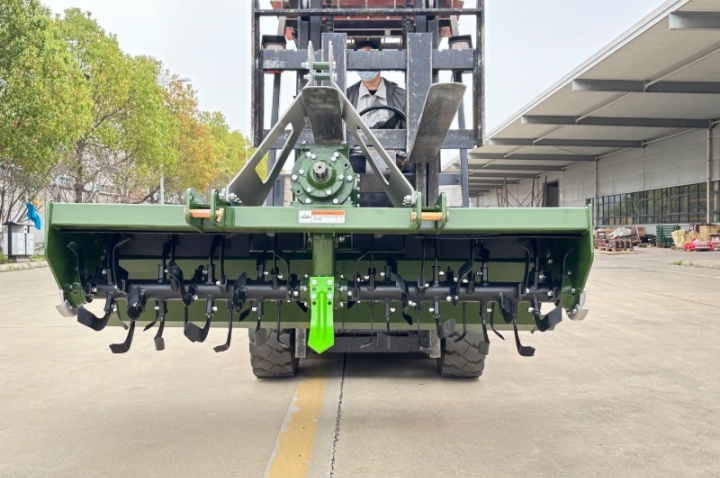

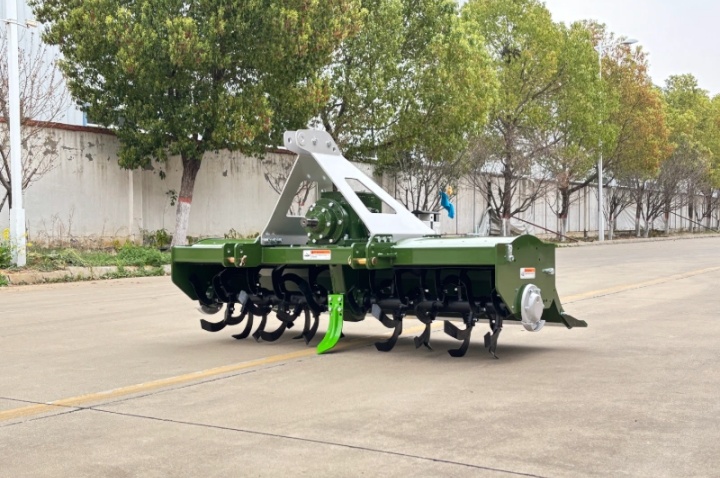

- The YAAO Medium-Gearbox series rotary cultivator uses 8-modulus gear transmission, matched with 35-80 HP tractors. The PTO shaft angle relative to the horizontal plane is about 10 degrees, effectively improving the transmission efficiency of the universal joint drive shaft and reducing drive shaft damage.
- The blade shaft is made from ø80 thickened seamless steel pipe and processed using double-end taper turning to ensure concentricity.
- The blades are made of 65Mn steel, IT245 type, with strong soil penetration capability. One pass achieves the effect of several passes with ordinary plows and harrows.
- Good terrain adaptability. By replacing the pair of bevel gears with different speed ratios, various working speeds from 220-320 R/min can be achieved when the PTO is 720 R/min.

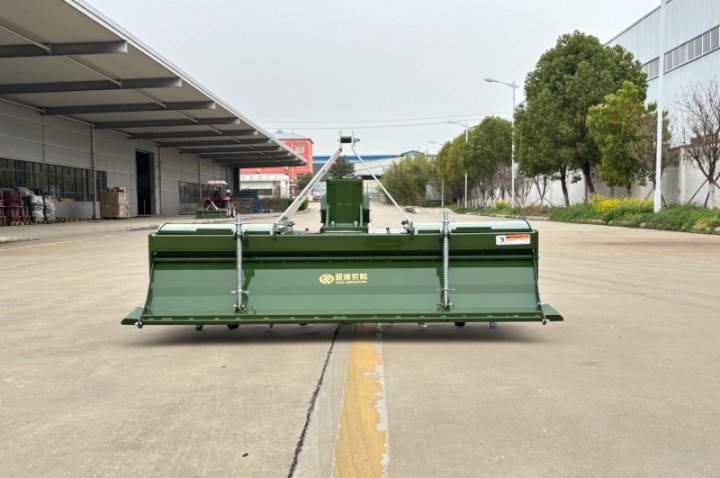

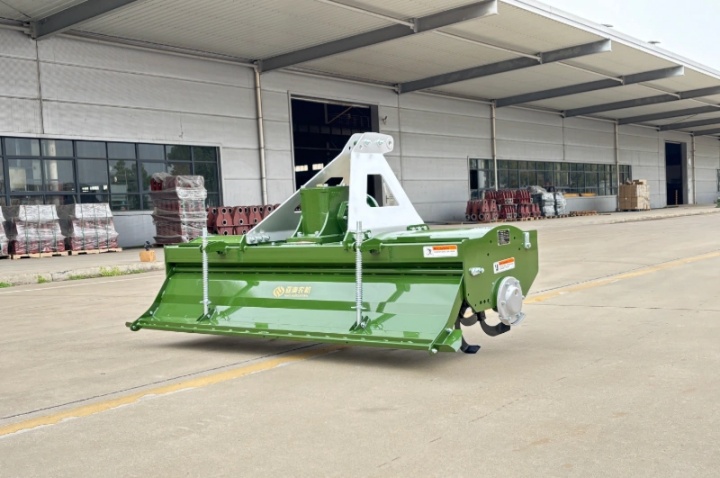

- The machine uses a portal-type suspension frame, making the entire structure integral, well-balanced, rigid, and high-strength. Working width ranges from 160cm to 200cm.
Technical Specification
Standard Configuration of G1 Medium-Gearbox Series Rotary Cultivator
| Output Shaft Speed (r/min) | 766;282 |
| Connection Method | Three-point hitch |
| Power Transmission Method | Central transmission |
| Blade Type | IT245 |
G1 Medium-Gearbox Series Rotary Cultivator Options
| Coding Series | Gear Modulus | Gearbox Center Distance | Pinion Teeth Bevel | Gear Teeth | Input Speed | Design Output Speed | Matched Tractor Horsepower(HP) |
| Medium-Gearbox Series Rotary Cultivator | 8 | 384 | 15 | 14 | 540 | 231 | 35-70 horsepower |
| 14 | 26 | 766 | 282 |
| Model | HP | Working Width(m) | Overall Dimensions(mm) L×W×H | Max. Tillage Depth(cm) | Blade Qty | Weight(kg) |
| 1GKN-160 | 39–50 | 1.6 | 1130×1800×985 | 8–16 | 44 | 360 |
| 1GKN-170 | 40–50 | 1.7 | 1130×1900×985 | 8–16 | 44 | 368 |
| 1GKN-180 | 50–70 | 1.8 | 1090×2000×1110 | 8–16 | 52 | 375 |
| 1GKN-200 | 60–80 | 2.0 | 1090×2200×1110 | 8–16 | 60 | 390 |
