Product Introduction

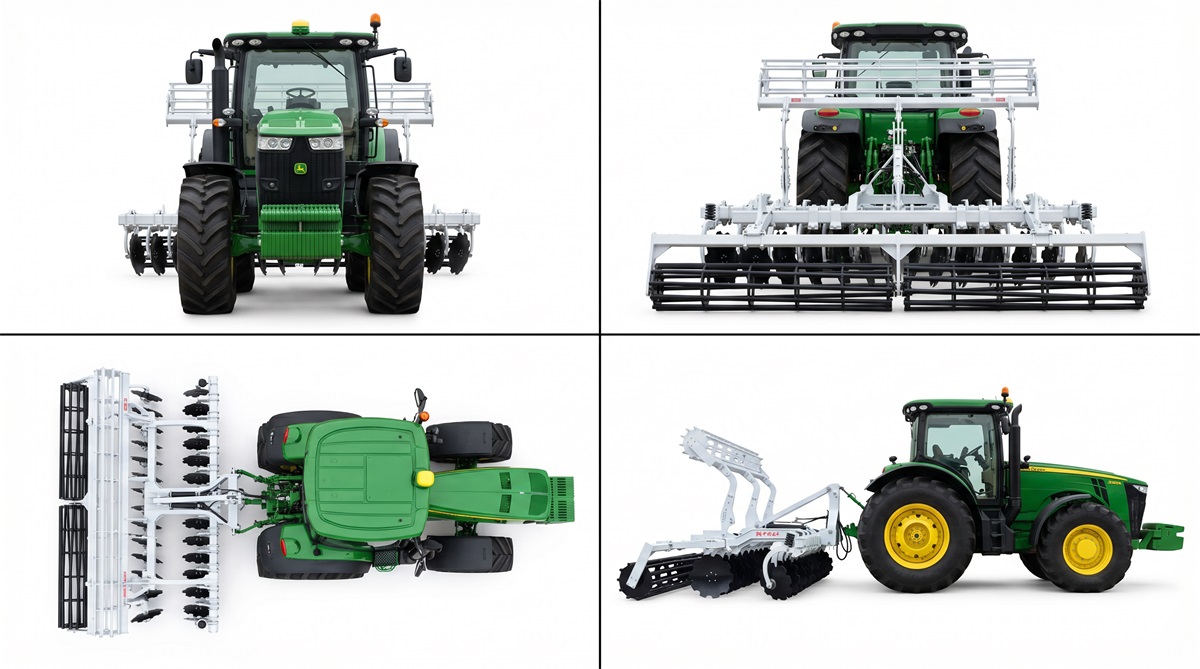

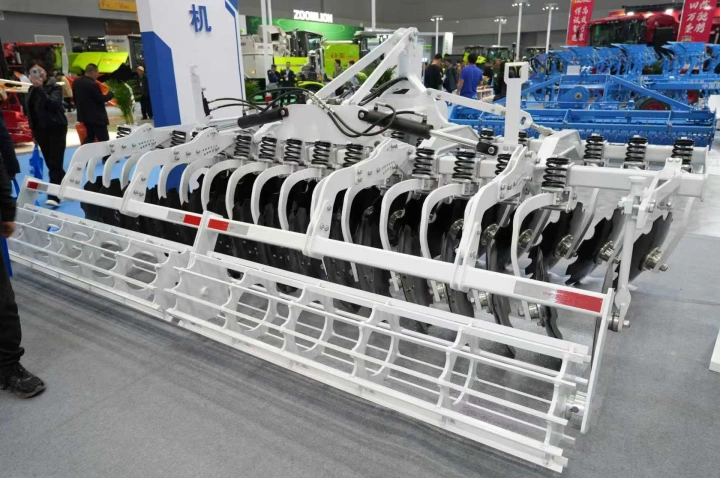

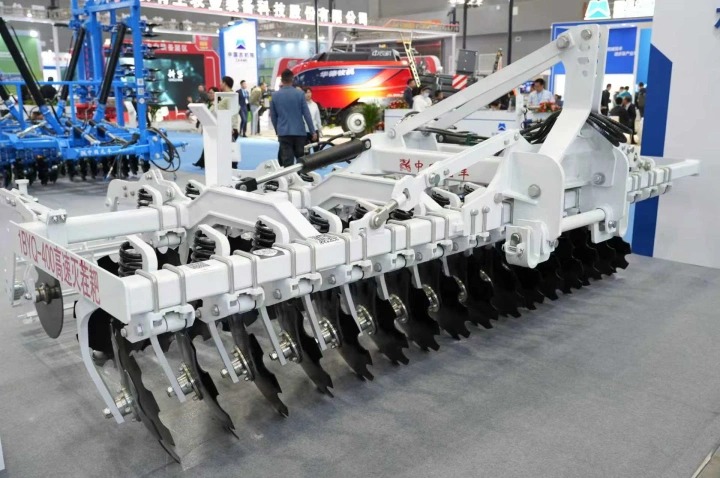

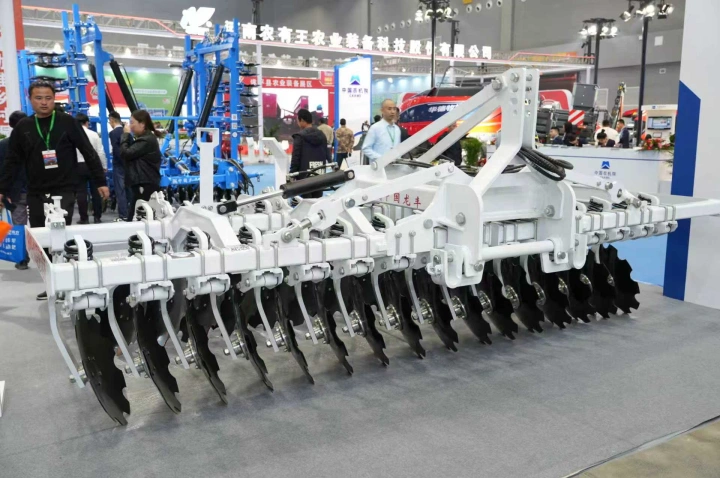

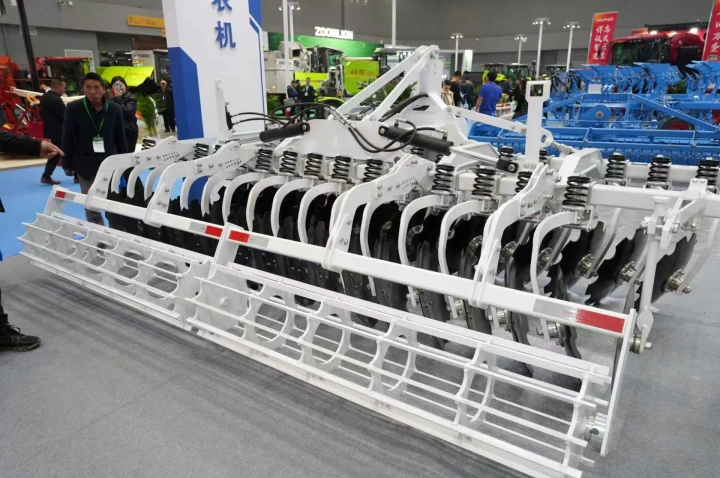

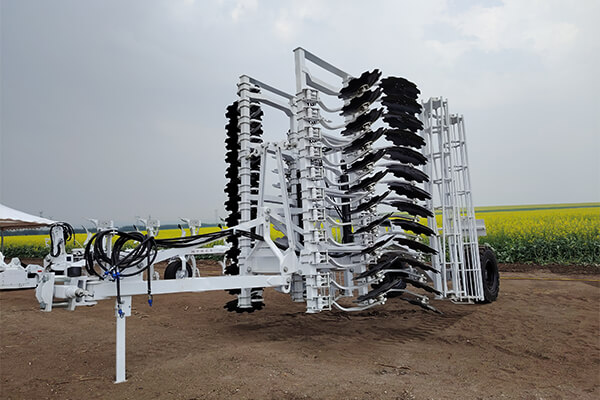

LEROX 1BYQ300KU/400KU/400/600 high-speed disc harrow series products are suitable for wasteland, straw land, corn stubble land and other terrains and crop stubble land. It is also suitable for seedbed preparation before sowing to provide good soil conditions for sowing. Its excellent configuration and excellent performance make it an indispensable tool in agricultural production. The integrated maintenance-free unit bearing adopts spring independent harrow legs, which can independently overcome obstacles and avoid missed tillage.
Features
- The disc harrow is suitable for a variety of terrains and crop stubble fields, and can meet the needs of different agricultural production.
- The working width ranges from 3m to 6m, and the working depth can be adjusted to 15cm, which can be adjusted according to specific operation needs. The design of two rows of notched rake blades enhances the stubble removal effect.
- The distance between the harrow blades is moderate, and the rear row of harrow blades is staggered with the front row of harrow blades, ensuring that the disc harrow can operate without clogging.
- The combination of suitable soil penetration angle and powerful harrow blades enables a comprehensive and consistent stubble-removing effect to be achieved even at a shallow working depth.
- The bearing adopts a multi-lip labyrinth seal structure and an integrated bearing, which is maintenance-free as a whole and greatly reduces maintenance costs.
- The disc harrow blades adopt maintenance-free bearings, eliminating the need for frequent servicing and lowering maintenance costs.
- When encountering hard objects (such as stones), the blades can independently move upward and quickly return to their original position after passing the obstacle, protecting both the blades and the tractor from damage.

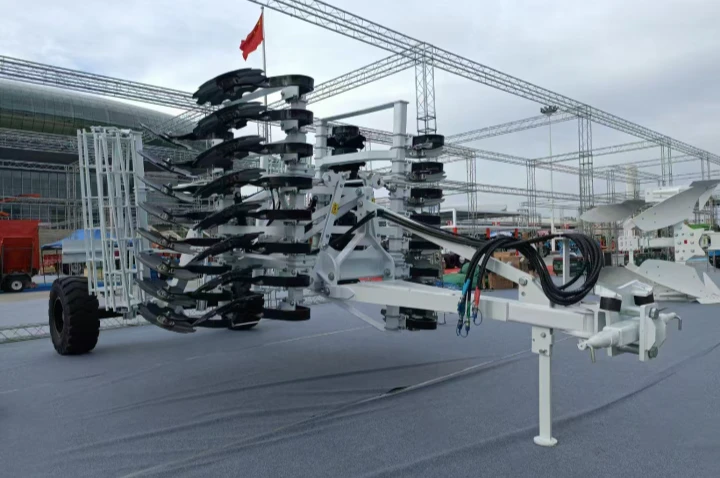

- Disc harrows with a working width greater than 4 meters use a hydraulic folding and semi-mounted attachment method, reducing pressure on the tractor and ensuring safe road transport.
Technical Specification
| Type | 1BYQ300KU | 1BYQ400KU | 1BYQ400 | 1BYQ600 |
| Dimensions: mm | 2800X3450X1800 | 2800X4450X1800 | 7300X4560X2680 | 7300X6560X2680 |
| Weight: kg | 1850 | 2650 | 5200 | 6400 |
| Supporting power: horse power | 140-180 | 180-240 | 180-240 | 220-320 |
| Q’ty of disc blade： pc | 24 | 32 | 32 | 48 |
| Diameter of disc blade：mm | 610 | 610 | 610 | 610 |
| Working width: mm | 300 | 400 | 400 | 600 |
| Traction structure: | Full-mount | Full-mount | Semi-mount | Semi-mount |
| Unit type: | Double Row Independent Discs | Double Row Independent Discs | Double Row Independent Discs | Double Row Independent Discs |
| Working depth: cm | 4-15 | 4-15 | 4-15 | 4-15 |

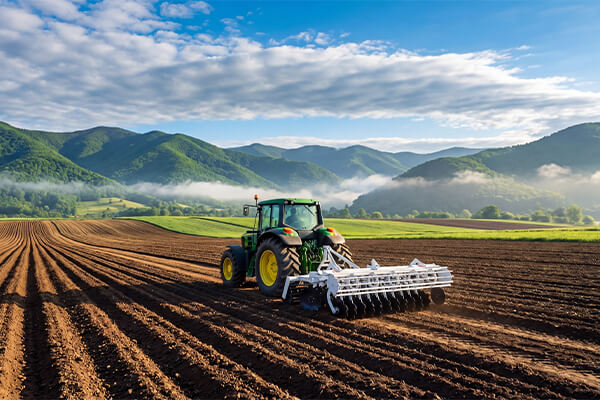

Customer Site
Company Advantages
LEROX is dedicated to delivering full-scenario implement solutions for modern agriculture. Our extensive product matrix spans multiple operational dimensions, offering an all-inclusive range from agile, compact models to heavy-duty flagship designs. Seamlessly matching mainstream power platforms from 80 to 600 horsepower, LEROX provides tailor-made equipment combinations that ensure high-efficiency, continuous, and synergistic operations worldwide—regardless of soil types or farming environments.
From primary tillage and precision seeding to crop management and harvesting, every core chassis and critical component of LEROX machinery is forged and proven under the most extreme field conditions. Empowered by advanced intelligent control systems and robust overload protection technologies, our equipment delivers stable, uncompromising performance in any harsh environment. More than just a machinery manufacturer, LEROX is a guardian of modern agronomy—reducing full lifecycle operating costs and creating long-term, value-driven smart returns for agricultural producers worldwide.
FAQ
Founded in 1993 with a primary focus on reversible ploughs, we have evolved into a comprehensive manufacturer with over 30 years of expertise. Our flagship products include high-performance hydraulic reversible ploughs, power harrows, and precision seed drills.
Today, the LEROX product ecosystem covers the entire cultivation cycle—including tillage, land preparation, seeding, and crop management. Our extensive portfolio features subsoilers, rotary cultivators, disc harrows, and hay rakes, all engineered to meet the diverse demands of modern global agriculture.
Yes, LEROX implements feature extremely high compatibility. Our designs follow international standards (such as Category 2/3/4 three-point linkage) and can perfectly match tractor models from major global brands. By providing various frame strengths (such as 140/160/180 series) and adjustable traction logic, we ensure that tractors from 80 hp to 600 hp can find the most suitable implement model, achieving optimal power transmission and fuel efficiency.
LEROX provides a comprehensive quality guarantee for all agricultural machinery. We offer a XXX warranty period for core structural components. During this period, if any component fails due to manufacturing defects, we will provide replacement parts free of charge. For wearing parts, we recommend purchasing a spare parts kit along with the machine to ensure operational continuity. Additionally, we provide lifetime remote technical support and detailed maintenance guidance.
Yes, LEROX provides customized solutions across our entire product line to adapt to various crops and soil conditions, offering modular configurations such as specialized plough bodies for sticky soils, adjustable safety systems for stony terrains, and calibrated metering units for different seed types to ensure optimal performance in your specific agronomic environment.
For international orders, LEROX ensures efficient delivery and robust protection: our standard lead time is typically 30 to 45 days depending on the order volume and customization, and all equipment is secured with reinforced steel frames or sea-worthy packaging to prevent damage during maritime transit while maximizing container space efficiency.
Yes, LEROX provides comprehensive technical support including detailed operation manuals and video tutorials for every machine, alongside professional after-sales service through remote video guidance and a rapid-response parts supply system to ensure your equipment maintains peak performance.
LEROX offers flexible payment terms to facilitate international trade, typically accepting T/T (Telegraphic Transfer) with a 30% deposit and the balance before shipment, or an Irrevocable L/C at sight (Letter of Credit) for larger orders to ensure financial security for both parties.
