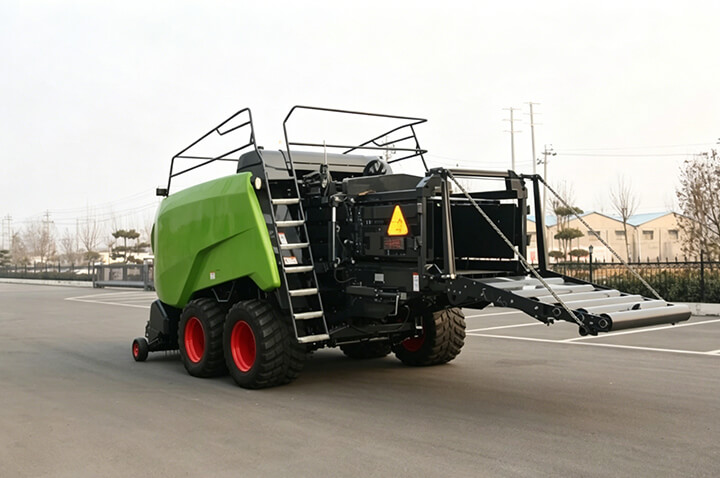

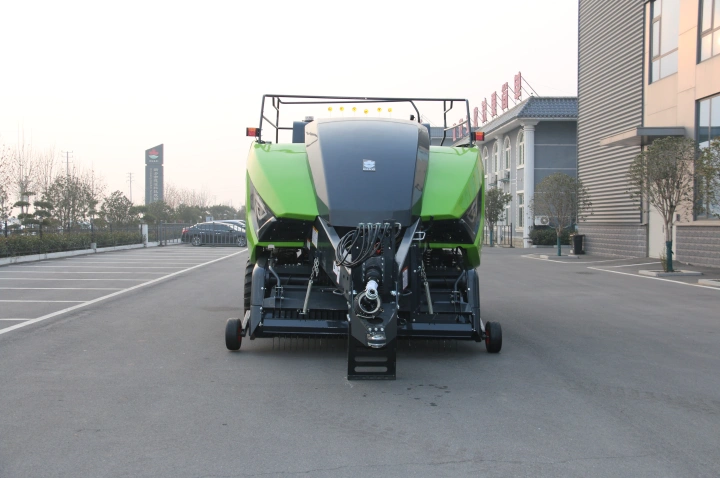

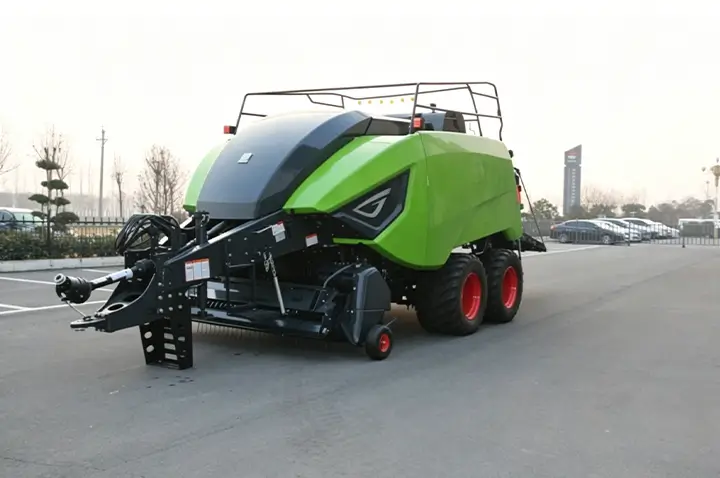

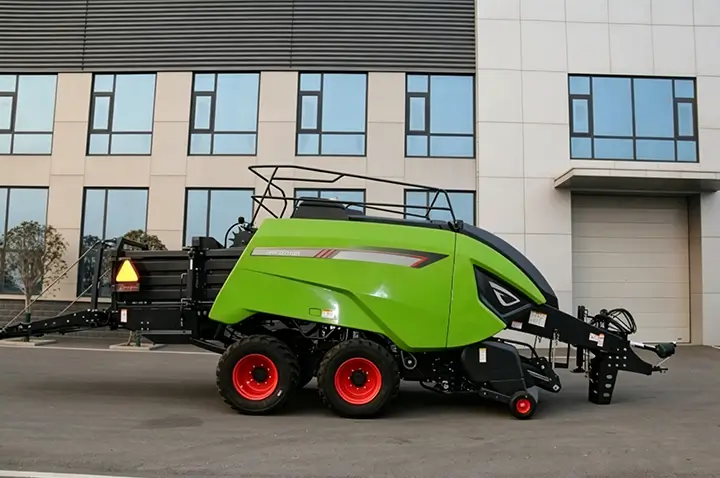

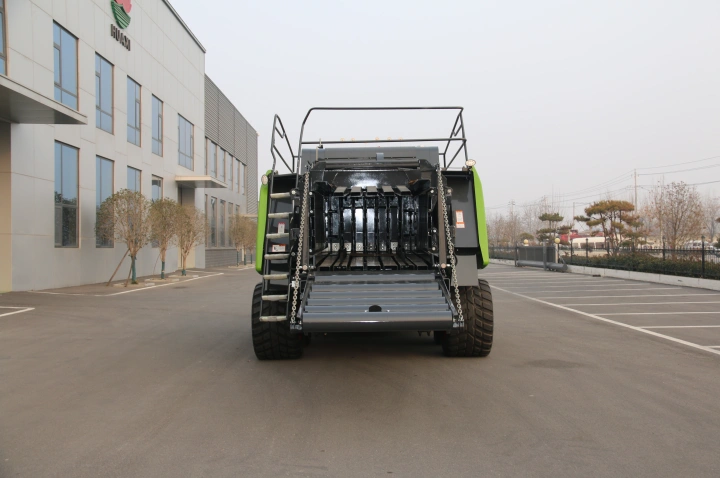

Description
This product adopts a feeding and pre-pressing mechanism consisting of pickup tines, feeding forks and grass retaining tines, delivering higher working efficiency and greater bale density. It is suitable for large-scale collection and baling of various forage grasses and crop straws.
Features
- The piston adopts reinforced six supports on both sides to improve the anit-impact strength and prevent the bale chamber from cracking.
- Adopting through-shaft nut connection method to solve the design defect of flywheel dropping off in similar models from other brands.
- Independently developed electronic control system, automatic control screen, Chinese/English operation interface, worry free to use.
- Adopting Rasspe TM double-knot knotter from Germany, equipped with hydraulic inertia flow high air volume blower, the operation is stable and the knotting is reliable.
- The pickup clutch is equipped with a universal adjustment function, which minimizes clutch failures to the greatest extent.
- The pickup adopts a dual-cylinder lifting structure for smoother lifting and lowering.
- The piston pressure detection uses an external pressure sensor, featuring high stability and easy maintenance and replacement.
- The pre-compression chamber pressurizes materials into flakes before entering the bale chamber to improve bale shape and density.
- The density of the bales is regulated by a three-way pressurized density cylinder, ensuring that the bales have a consistent density and a square shape.
- Tandem Axle, independent front and rear leaf spring suspension and rear wheels turning with the steering increase profiling ability and reduce turning radius.
- Bale weighing system can helps operators easily calculate baling weight and workload.
Technical Specification
| Item | Parameter | Unit | |
| Bale size | Cross section (W × H) | 1200×900 | mm |
| Bale length | Adjustable to 2743 | mm | |
| Baler size | Bale chute lifting:Overall dimension(L×W×H) | 9120×3180×3370 | mm |
| Pickup | Total width/effective pickup width | 3080(Outside of the small wheel)/2270 | mm |
| Number of tines/spacing between tines | 128/66 | (unit)/mm | |
| Protector | Overrunning clutch and friction clutch | / | |
| Pickup lifting | Hydraulic cylinder control | / | |
| Feed system | Secondary feeding/protection device | Six stuffer forks (surface heat treated)friction clutch | / |
| Third level feeding/protection device | Fork type feeding fork/shear bolt | / | |
| Number of cutting knives (optional) | 0-13-26 | / | |
| Knotting mechanism | Knotter number/Twins capacity | Six sets of double knot knotters/30 rolls | / |
| Rope quality | Six-knotter dedicated high-quality plastic rope | / | |
| Baling plunger | Baling plunger speed | 47 | Stroke/min. |
| Baling plunger stroke | 740 | mm | |
| Tyre | Tandem axle | 620/40R22.5 IMP | / |
| Pickup gauge wheel | 15×6.00-6/4.50 | / | |
| Main drive | Transmission/protective device | Closed secondary reduction, overrunning clutch, friction clutch, and shear bolt | / |
| Lamp | Work lights, warning lights, turn signal and tail lights | / | |
| Display and control terminal | Color screen touch interface | / | |
| Bale density control | Hydraulic Control | / | |
| Matching tractor | Recommended PTO power | ≥200 | (HP) |
| PTO | 1000r, 20 keys | (r/min.) | |
| hydraulic system | Four sets of bidirectional hydraulic output valves | / | |
Company Advantages
LEROX is dedicated to delivering full-scenario implement solutions for modern agriculture. Our extensive product matrix spans multiple operational dimensions, offering an all-inclusive range from agile, compact models to heavy-duty flagship designs. Seamlessly matching mainstream power platforms from 80 to 600 horsepower, LEROX provides tailor-made equipment combinations that ensure high-efficiency, continuous, and synergistic operations worldwide—regardless of soil types or farming environments.
From primary tillage and precision seeding to crop management and harvesting, every core chassis and critical component of LEROX machinery is forged and proven under the most extreme field conditions. Empowered by advanced intelligent control systems and robust overload protection technologies, our equipment delivers stable, uncompromising performance in any harsh environment. More than just a machinery manufacturer, LEROX is a guardian of modern agronomy—reducing full lifecycle operating costs and creating long-term, value-driven smart returns for agricultural producers worldwide.
FAQ
Founded in 1993 with a primary focus on reversible ploughs, we have evolved into a comprehensive manufacturer with over 30 years of expertise. Our flagship products include high-performance hydraulic reversible ploughs, power harrows, and precision seed drills.
Today, the LEROX product ecosystem covers the entire cultivation cycle—including tillage, land preparation, seeding, and crop management. Our extensive portfolio features subsoilers, rotary cultivators, disc harrows, and hay rakes, all engineered to meet the diverse demands of modern global agriculture.
Yes, LEROX implements feature extremely high compatibility. Our designs follow international standards (such as Category 2/3/4 three-point linkage) and can perfectly match tractor models from major global brands. By providing various frame strengths (such as 140/160/180 series) and adjustable traction logic, we ensure that tractors from 80 hp to 600 hp can find the most suitable implement model, achieving optimal power transmission and fuel efficiency.
LEROX provides a comprehensive quality guarantee for all agricultural machinery. We offer a XXX warranty period for core structural components. During this period, if any component fails due to manufacturing defects, we will provide replacement parts free of charge. For wearing parts, we recommend purchasing a spare parts kit along with the machine to ensure operational continuity. Additionally, we provide lifetime remote technical support and detailed maintenance guidance.
Yes, LEROX provides customized solutions across our entire product line to adapt to various crops and soil conditions, offering modular configurations such as specialized plough bodies for sticky soils, adjustable safety systems for stony terrains, and calibrated metering units for different seed types to ensure optimal performance in your specific agronomic environment.
For international orders, LEROX ensures efficient delivery and robust protection: our standard lead time is typically 30 to 45 days depending on the order volume and customization, and all equipment is secured with reinforced steel frames or sea-worthy packaging to prevent damage during maritime transit while maximizing container space efficiency.
Yes, LEROX provides comprehensive technical support including detailed operation manuals and video tutorials for every machine, alongside professional after-sales service through remote video guidance and a rapid-response parts supply system to ensure your equipment maintains peak performance.
LEROX offers flexible payment terms to facilitate international trade, typically accepting T/T (Telegraphic Transfer) with a 30% deposit and the balance before shipment, or an Irrevocable L/C at sight (Letter of Credit) for larger orders to ensure financial security for both parties.
